Ammunition Hardware — Defense Equipment

SHELL HEAT TANK AMMN

Nomenclature

SHELL 125 mm HEAT TANK AMMN

Mass of Complete Round

29 kg

Muzzle Velocity at +15°C

905 m/s

Maximum Range

4000 m

Point Blank Range

960 m

Armour Thickness Defeated (Normal)

500 mm

Armour Thickness Defeated (60°)

220 mm

Max. Chamber Pressure

353 mpa

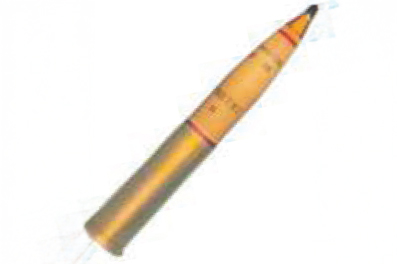

SHELL IFG HE

SHELL 105 mm IFG HE

Mass of Shell

16.97 kg

591 m/s (Normal), 710 m/s (Super)

Type of Filling

High Explosive (RDX/TNT)

17.6 km

Shell Size

Ø104.72 mm x 448 mm

Weight of Shell

13.35±0.150 kg

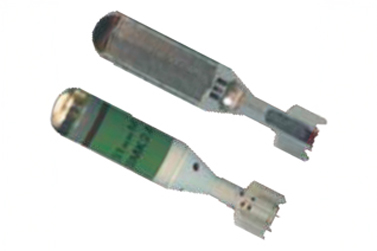

SHELL MORTAR PWP

SHELL 120 mm MORTAR PWP

Mass of Bomb

8.530±0.350 kg

Length of Ammunition

682.80 mm

Mass of Filled Bomb

13.225 kg

Maximum Diameter

119.6 mm

6.512 km

331 m/s

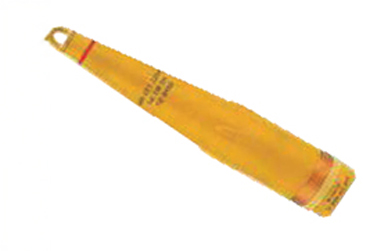

SHELL HE ERFB-BT/BB

SHELL 155 mm HE ERFB-BT/BB

Type

High Explosive Base Bleed

43.5 kg

Explosive

TNT or RDX

30 km (BT), 39 km (BB)

Compatibility

NATO standard guns

SHELL HE M107

SHELL 155 mm HE M107

43.2 kg

TNT / Composition B

Fuze

PD / VT / Time

18.5 km

155 mm towed and SP guns

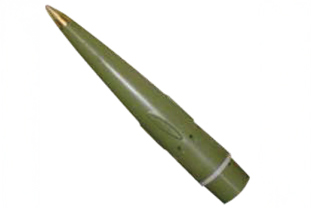

SHELL SCREENING SMOKE ERFB

SHELL 155 mm Screening Smoke ERFB

Payload

HC or WP

Smoke Duration

90-120 sec

Effective Area Coverage

3000 m²

30 km

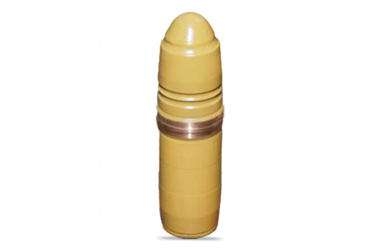

SHELL PFFC

SHELL 155 mm PFFC

Preformed Fragmentation

Filling

TNT/RDX + Steel Balls

Fragment Count

~10000 fragments

30+ km

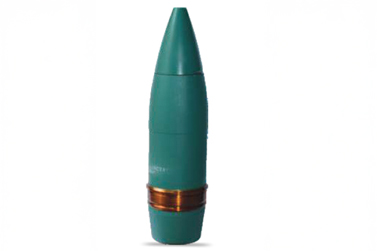

SHELL SRGM TP

SHELL 155 mm SRGM TP

Target Practice

43 kg
