General

REXBDAN is a versatile, futureproofed 8×8 vehicle built for a range of mission objectives and terrain styles.

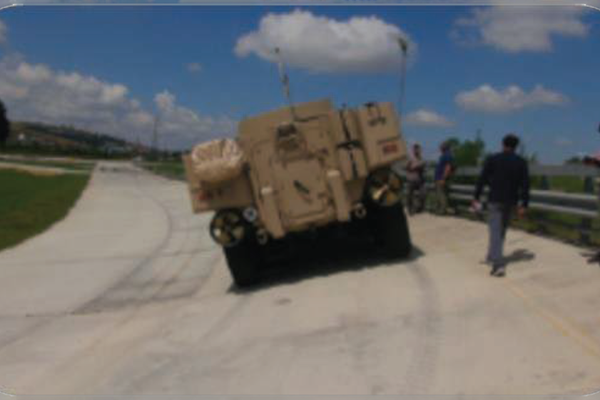

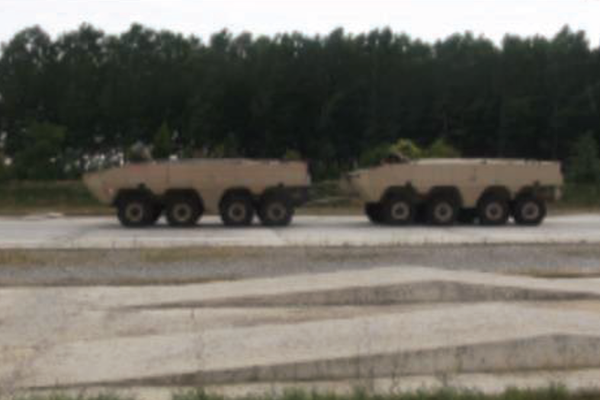

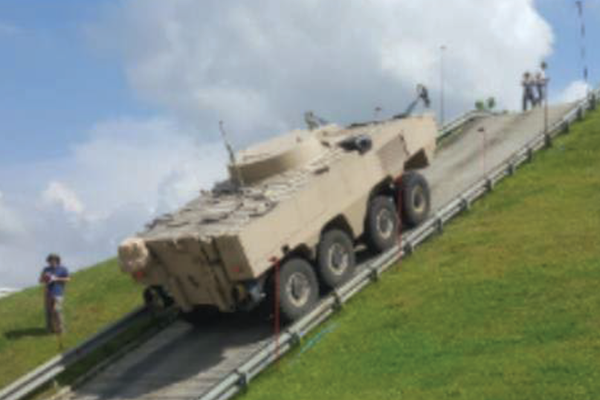

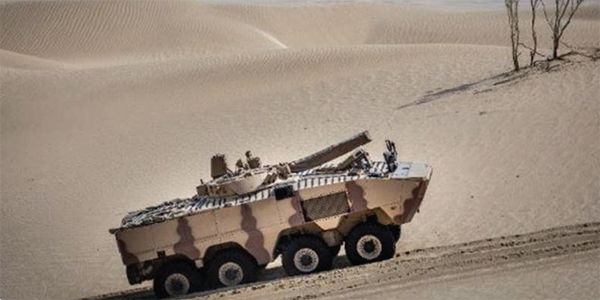

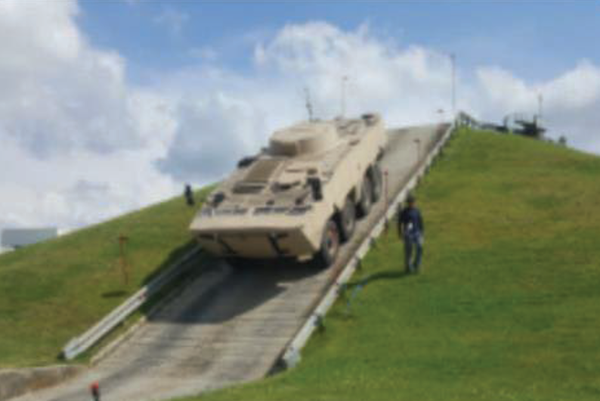

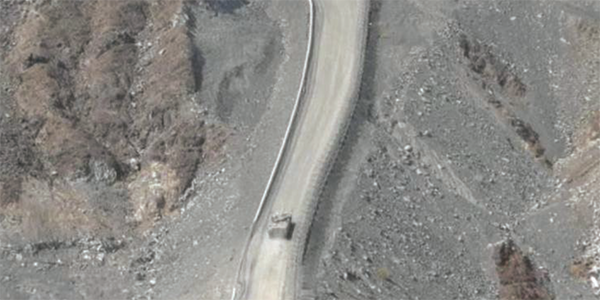

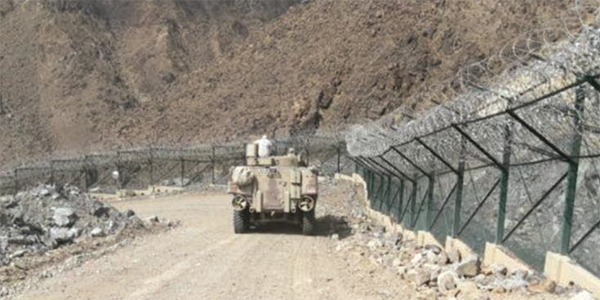

Superior off road mobility in all types of terrain

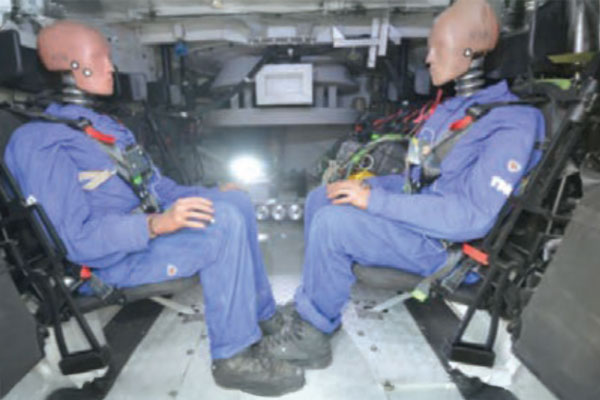

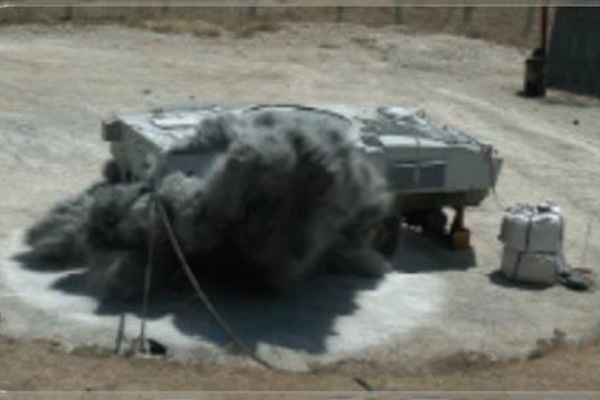

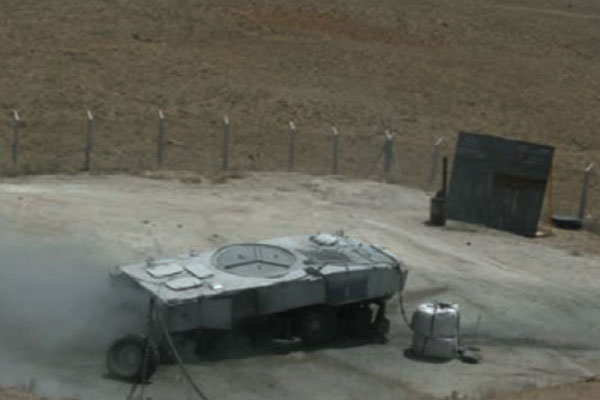

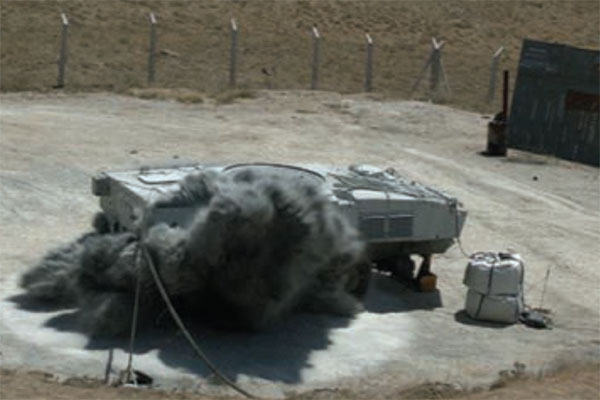

High level of ballistic, mine and IED protection.

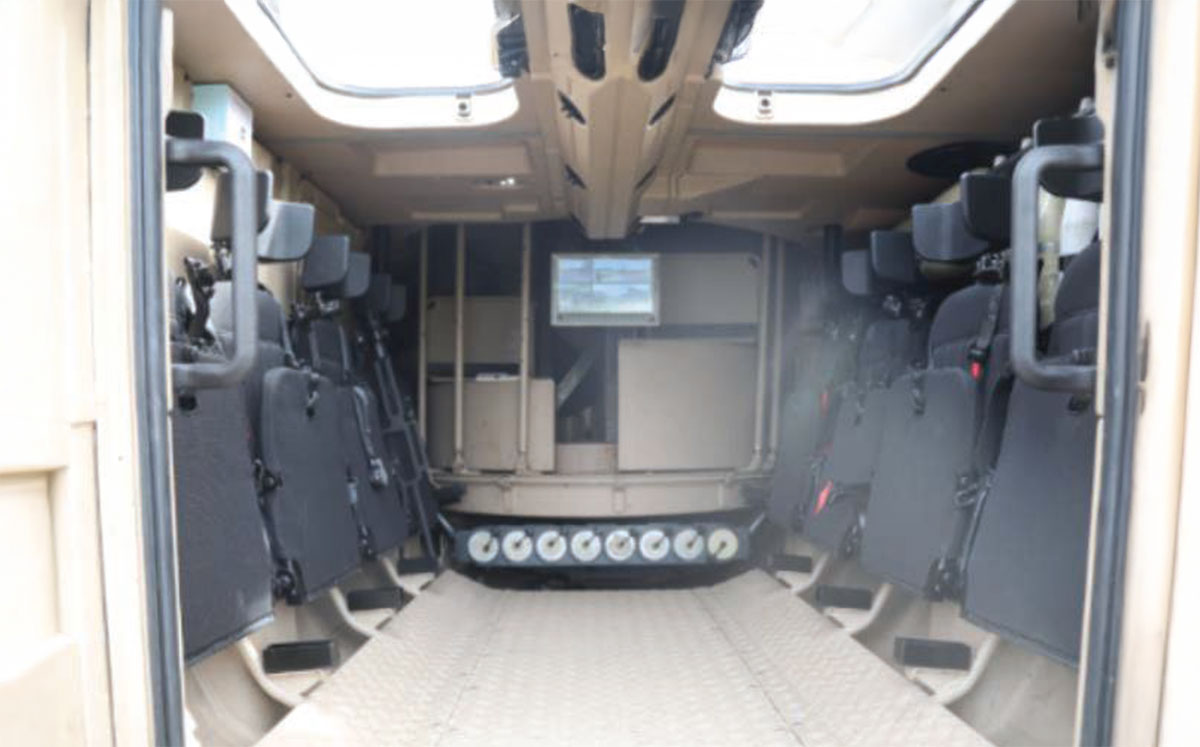

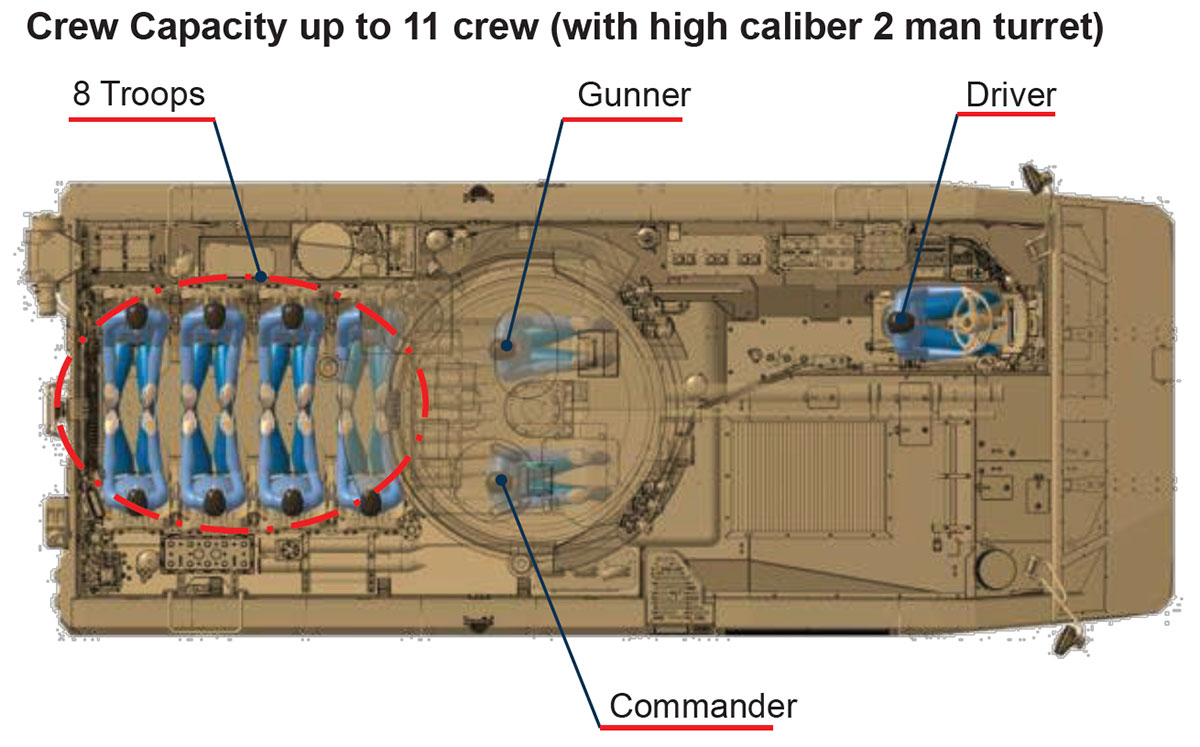

Spacious and ergonomical internal volume.

REXBDAN 8X8 QUALIFIED TO MILITARY STANDARDS

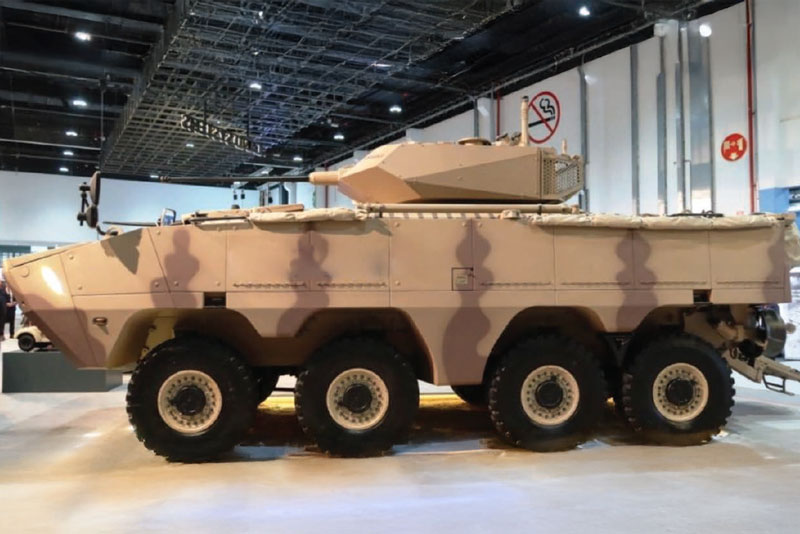

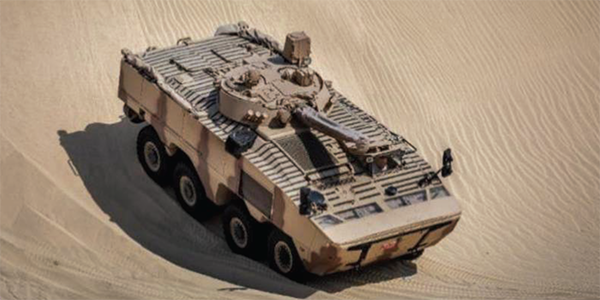

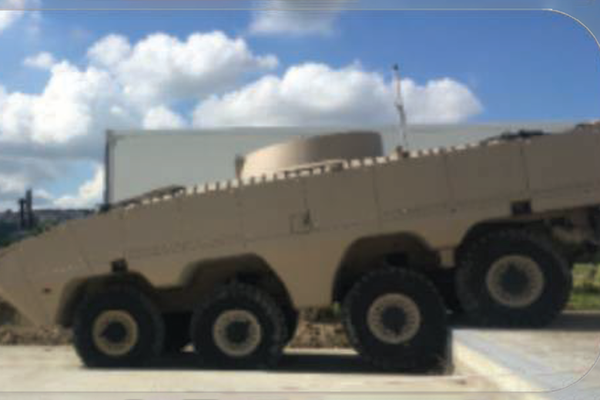

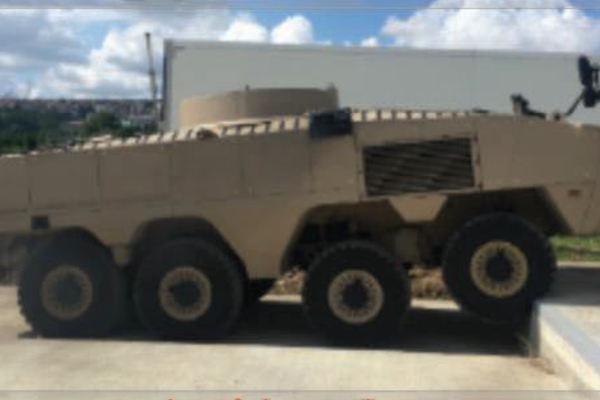

REXBDAN 8X8

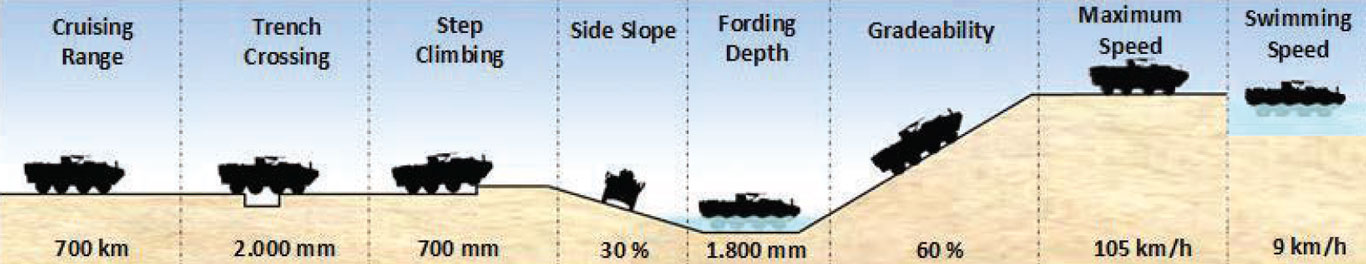

Superior Tactical & Technical Performance

Meets that challenge

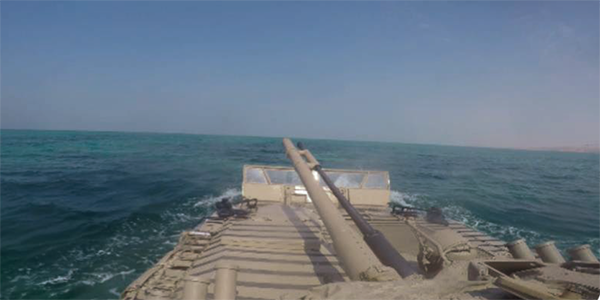

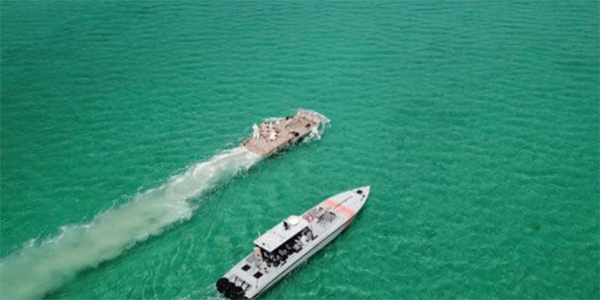

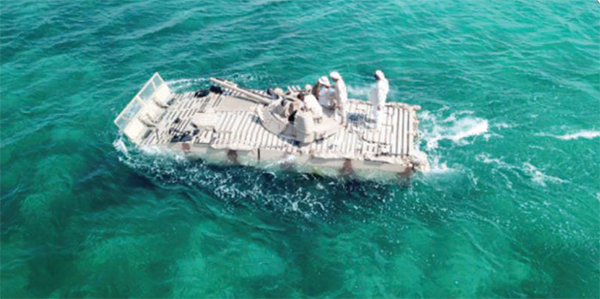

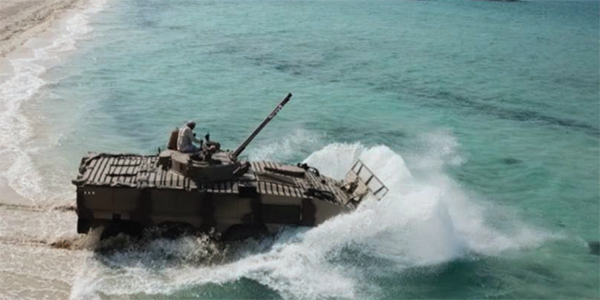

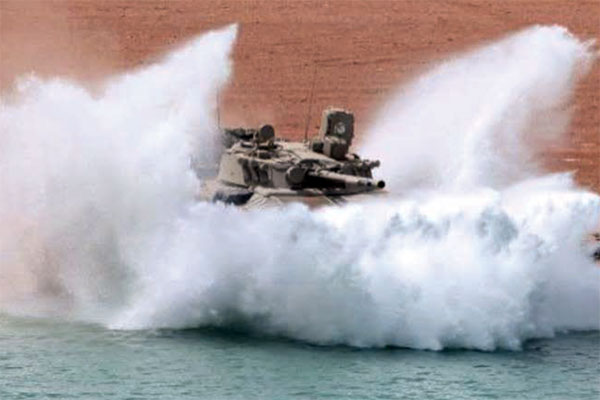

A next generation amphibious vehicle

Weight And Dimensions

Overall Width

3.250 mm

Overall Height

2.350 mm (over hull)

Overall Length (w/o winch)

8.000 mm

Gross Vehicle Weight

up to 30.000 kg

VEHICLE SYSTEMS OVERVIEW

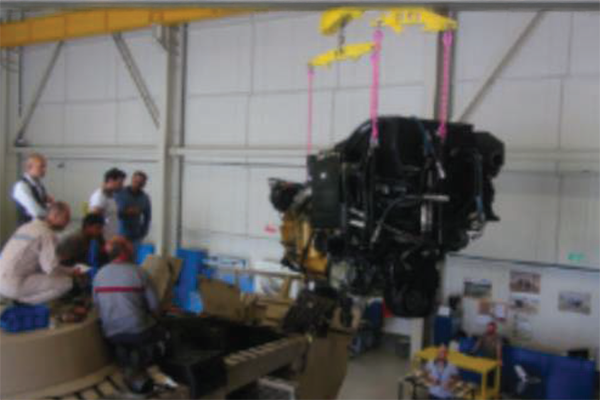

Engine

CATERPILLAR C13 Turbo Intercooler

12,5 liters, Diesel, 6 cyl. Water cooled

The engine is compatible with F54 and F34 fuels

Transmission

Allison 4500SP automatic transmission with 6 forward and 1 reverse gear speed.

Fully automatic and torque converter driven.

Extended torque range, higher GVW capacity and advanced electronic controls

Suspension and Axles

Fully independent suspension with telescopic type hydraulic shock absorber & helical spring.

Reliable suspension system of the vehicle results in a low life cycle operating cost

Automatic Fire Extinguishing System (AFES)

AFES for crew and engine compartments.

Manual activation is possible. The system consist of:

1) Control Unit

2) Fire Extinguisher Cylinders

3) Optical Detectors

4) Thermal Wire Detector

Communication Systems

1) Compatible with well known Command, Control, Communications, Computers, and Intelligence (C4I) systems as per customer requirements

2) Tactical communication systems provided as option depending on customer requirements

Combat Systems

Provisions for any new or in-use Battle Management Systems and equipment inside the vehicle.

Embedded various BMS from different suppliers

Displays

1) Computer Display Unit for driver

2) Computer Display Unit for personnel compartment

3) Ramp Door Control Unit to open/close the ramp door and view the rear or front of the vehicle

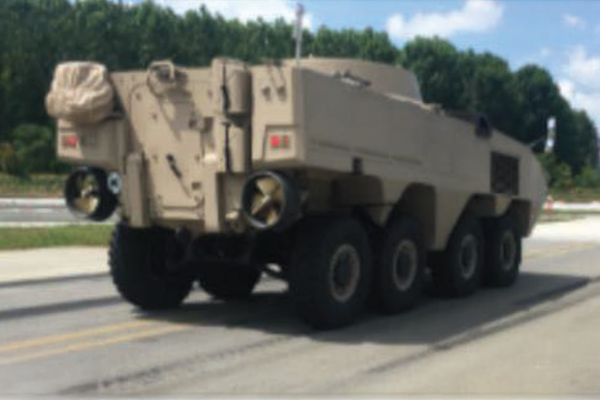

Hydraulic Operated Rear Ramp Door

The hydraulic operated rear ramp door with emergency door. The driver opens and closes the ramp door via the control panel from the driver compartment and check the ramp door access area from the rear view camera. Additionally ramp door opened and closed via Ramp Door Control Unit at rear crew compartment.

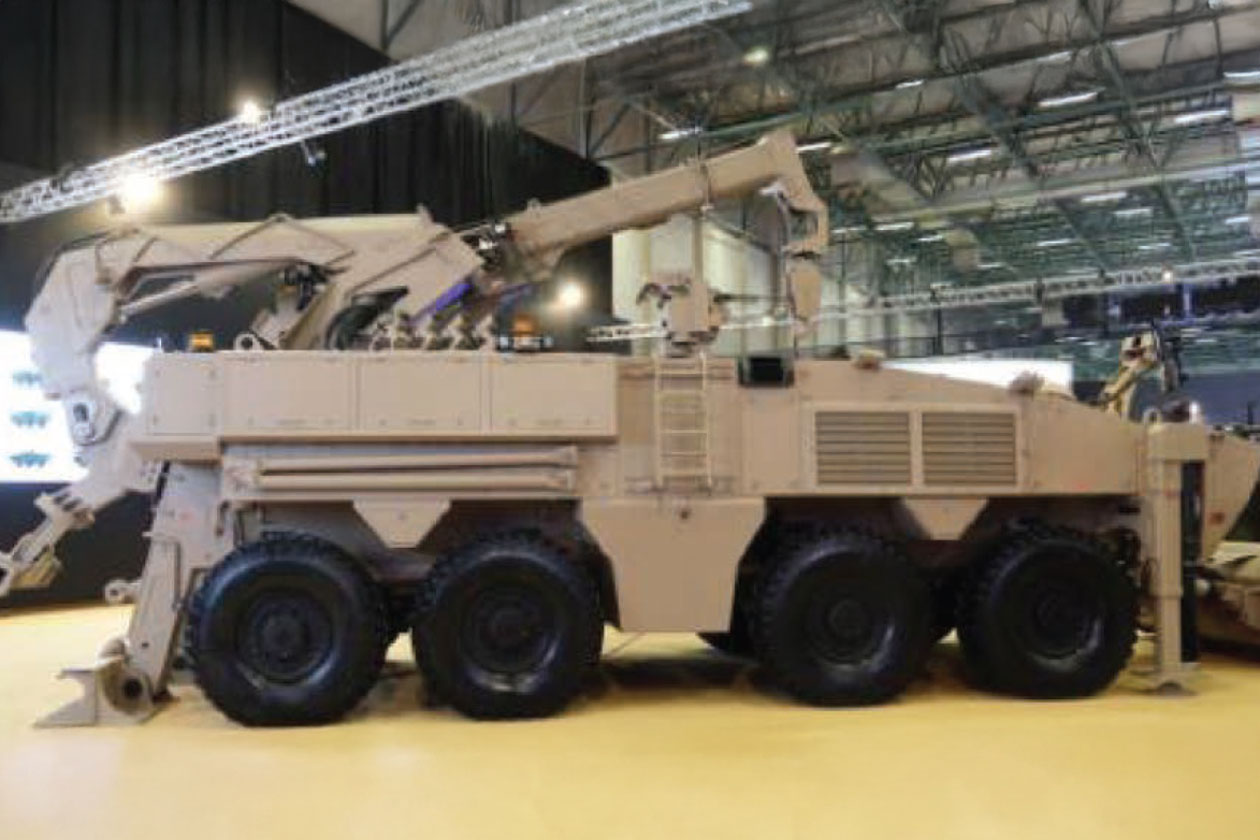

Hydraulic Self Recovery Winch

Electrically controlled, hydraulically actuated at the rear side of the vehicle. Can be used at both front and rear of the vehicle

360 degrees Awareness System

Cameras located on right and left sides of the vehicle provide crew near awareness of the vehicle on the display in crew compartment.

Tyres

Michelin XZL 14.00 R20 radial tires with run-flat devices. Compatible with FINABEL 20.A.5.

Central Tyre Inflation System

All tyres are inflated and deflated by the driver using CTIS system

Enables drivers to adjust tire pressure while driving to match the relevant ground conditions

Electrical and Electronics Systems

24V compliant with military standards.

Computer controlled electronics system operates and diagnoses all major sub-systems.

28 Volt 570 Ampere alternator.

2 x 12 Volt 120Ah batteries.

Front/Rear View Thermal and Day Camera

Rear View Thermal and Day Cameras assist the driver to navigate safely while reverse maneuvering in day and night conditions.

The vision is displayed on driver’s Computer Display Unit.

Steering

1st and 2nd axles are steerable for short turning circle.

Left Hand Drive, hydraulic assisted power steering with adjustable steering.

Brakes

Pneumatic service brakes with discs on each wheel, dual circuit with ABS.

Spring activated, pneumatic release independent park brake system.

Transfer Box

2 speed transfer case

3 positions (high/low/neutral). High/low range shift unit provides for reliable shifting.

NBC Protection System (Overpressure Type)

NBC Protection System removes nuclear, biological, and chemical particles from the air and provides ventilation to the over-pressured crew compartment.
