Rex Portable Jammer — Defense Equipment

Portable Jammer - High Power, Broad Coverage

The manpack or portable jammer is a lightweight and easy to carry jammer. The jamming technology is reactive, active or hybrid. The output power (max. 250W) is exceptional high for portable jammers in the market.

The basic configuration has an output power of 250W (HF/VHF/UHF 100W, 2G, 3G, 4G, 5G, WIFI, Bluetooth 100W, 3GHz–6GHz 50W).

The following bands can be set flexible over the GUI:

2 × 300MHz bandwidth in the range of 20MHz – 530MHz

4 × 300MHz bandwidth in the range of 600MHz – 2700MHz

2 × 300MHz bandwidth in the range of 2700MHz – 6000MHz

The system has a total output power of 250W and could cover 20 to 6000MHz . The system can optionally be used with external antennas with polarization diversity in receiving and in transmitting mode, which can give an additional gain of 6 – 20dB (4 – 100 times better).

The system includes additional spectrum analyzer functionality.

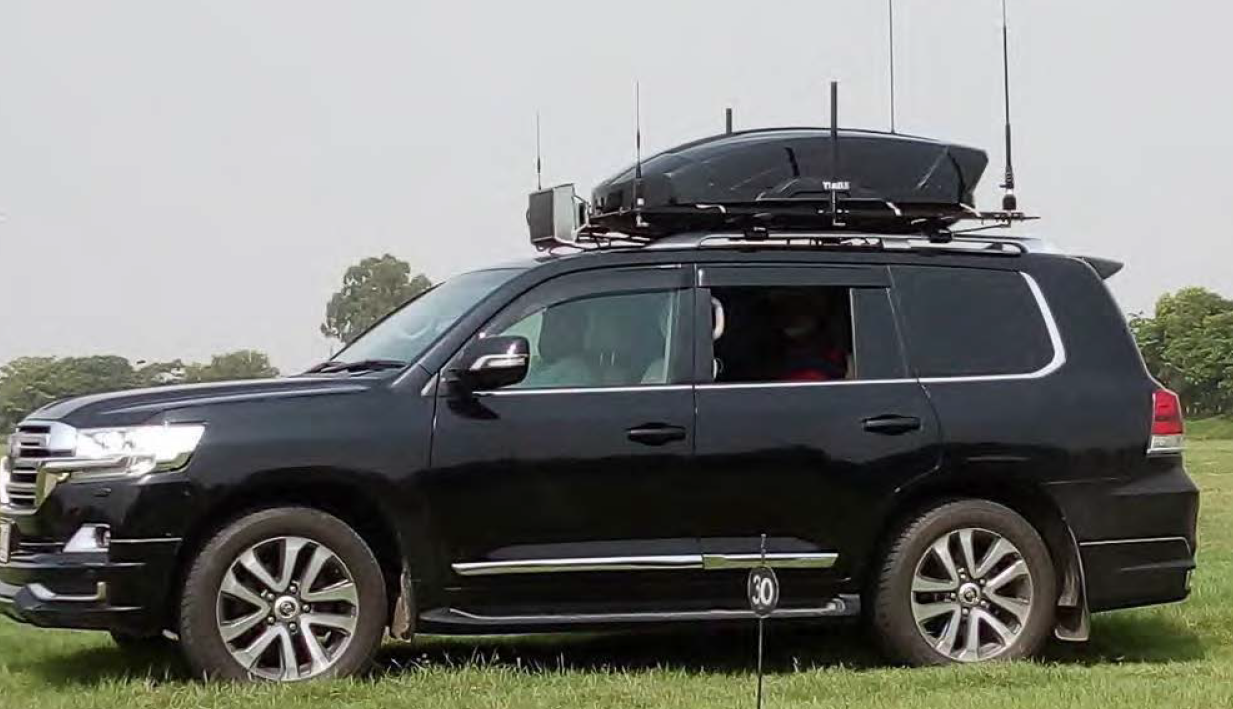

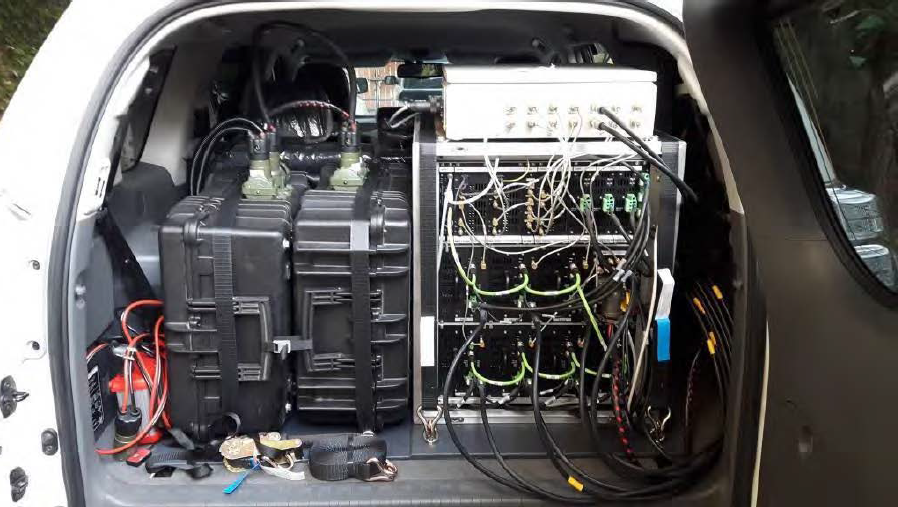

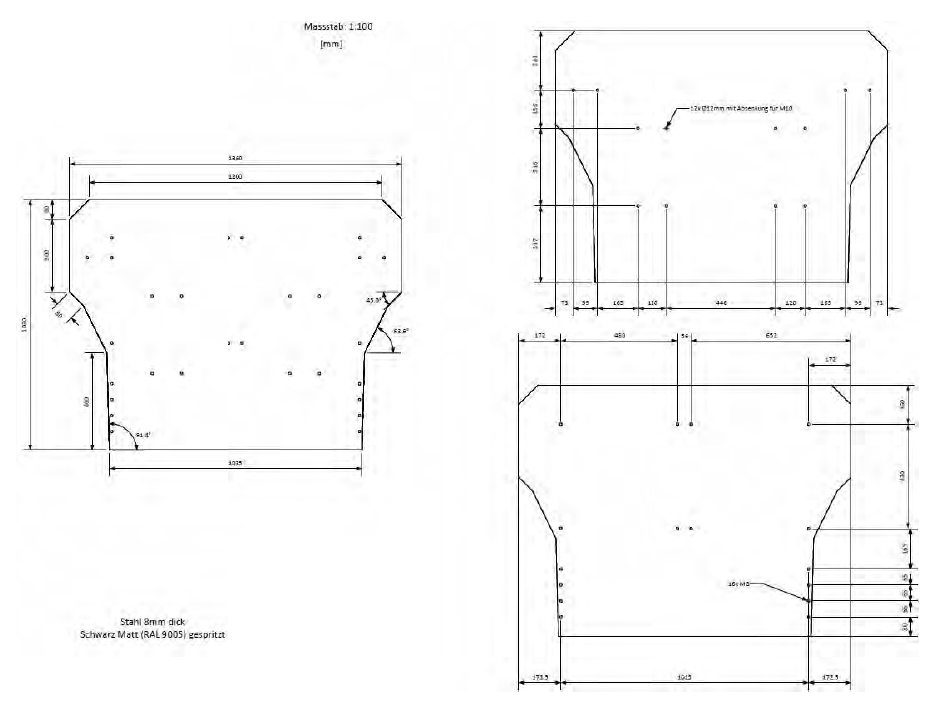

It can be installed quickly on a backpack, car or fixed position. From that position, a 200m – 500m fiber optic cable can be deployed to control the system remotely if necessary, to stay safe from threats.

1.1 Jamming Algorithms of the Jammer

Continuous jamming – jammer generates signal in user programmable ranges. Input RF signal has no influence on output. This mode includes algorithms as:

Barrage permanent – device is generating noise signal on defined frequencies with defined power

Custom permanent – device uses previously saved signal, bandwidth and numbers of carriers can be adjusted and uploaded from a preloaded file

Waveforms can be generated accordingly customer needs

Reactive jamming – jammer reacts on RF input signal by generating/replaying signal on output with predefined power. This mode includes algorithms as:

Reactive – generating output signal when input power is above a defined threshold

Reactive – generating an output signal according to input signal

Reactive – generating an output signal according to input signal, if there is no signal detected in the programmed band, the signal generator creates in the whole band a white noise with maximum power

Both active and reactive jamming can be combined in the same band (hybrid).

1.2 TX Power of the Jammer

The system covers HF/VHF/UHF, 2G, 3G, 4G, 5G, WIFI, Bluetooth and 3GHz–6GHz. The power distribution is as follows:

HF/VHF/UHF 100W

2G, 3G, 4G, 5G, WIFI, Bluetooth 100W

3000MHz–6000MHz 50W

Antennas - REX Tactical

2 Antennas

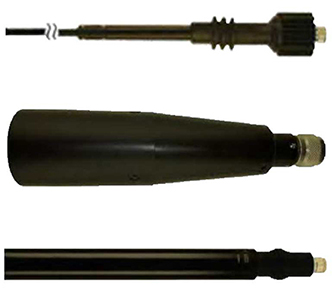

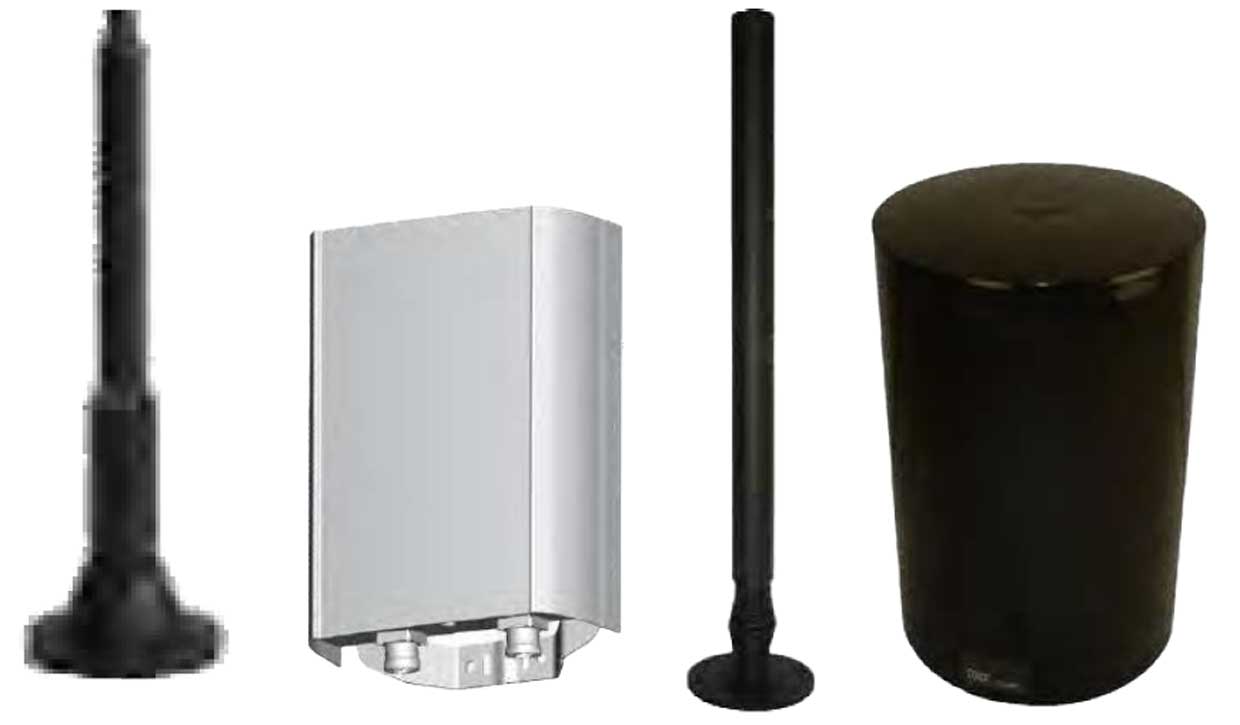

The antennas are optimized for the dedicated ranges. In the original configuration are 3 antennas included.

Housing - REX Tactical

3 Housing

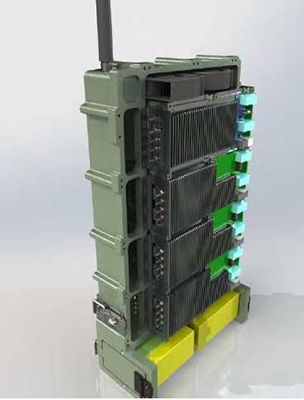

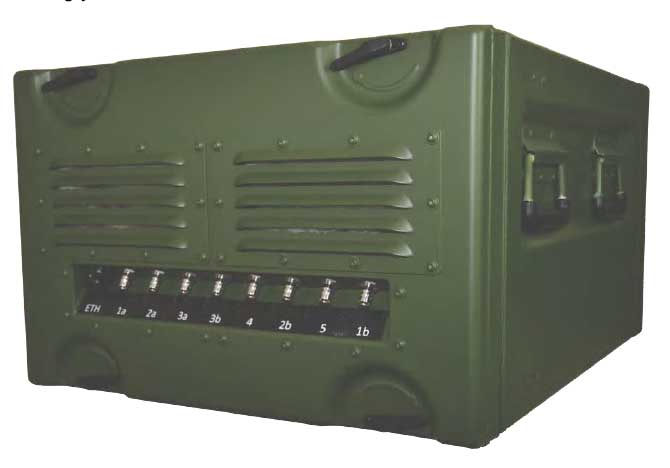

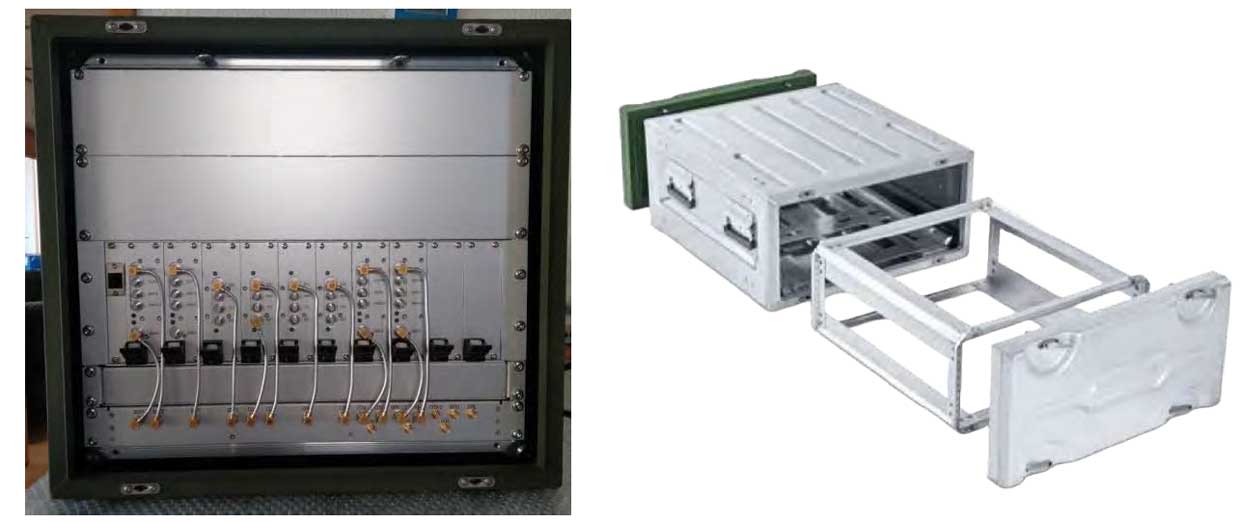

The Jammer housing has the following dimensions (including lids):

Dimension

Outside (without lids)

Height:

580mm

Width:

320mm

Depth:

146mm

23 kg without antennas and batteries

Standards

MIL-STD-810

Colour

Green (RAL6031-f9)

GUI - REX Tactical

4 GUI (graphical interface)

The portable or manpack jammer can be programmed by any computer over Ethernet cable and a dedicated GUI Software.

In the GUI the operator can program the frequencies, the power and the jamming application as barrage, discrete signals and reactive. The operator can program notch frequencies (gaps) which should not be jammed. The GUI can be designed / customized on special request as per user needs. However, a standard GUI is provided.

The Jammer offers a variety of indications and alarms. All units are permanently monitored. In case a warning or failure occurs, the operator will be informed through audible tone and on the screen.

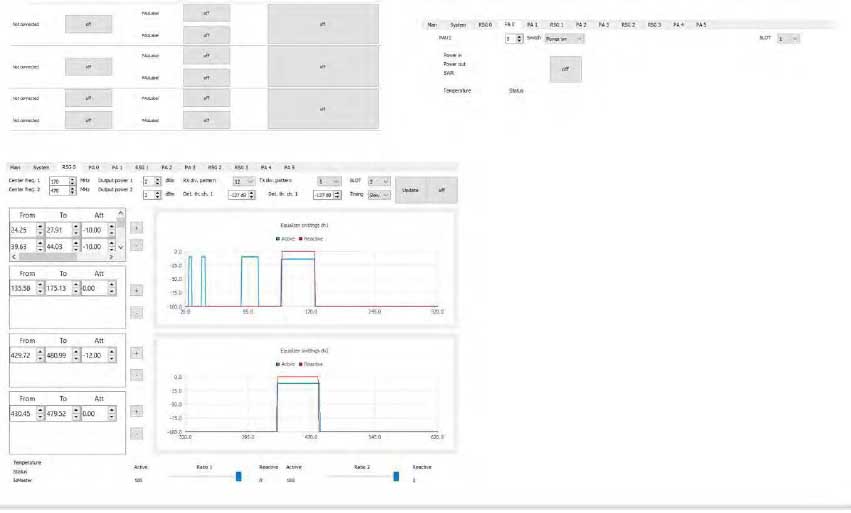

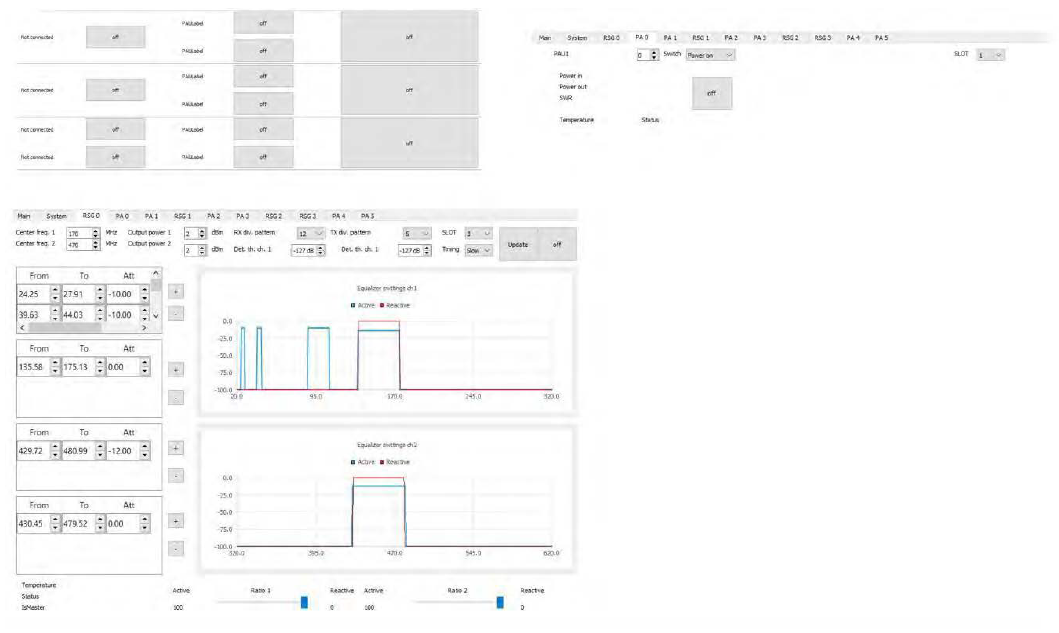

Picture as an example:

5 Operational Power Source

The system uses 9V – 36V, backed by two 24V, 18.4A/h lithium phosphor batteries, this guarantees an independent power on full load for about 1h. The system is directly connected to the batteries and the batteries can be changed while operation (hot swappable).

6 Remote Login (only if User allows)

It is possible to remotely access the Jammer via modem and landline connection to the internet. The system supplier can support upon request of the maintenance personnel.

1 Main Features

The Jammer operates as a blocker to avoid wireless communication and connection. Every band can be activated independently. The system is fully reactive, active or hybrid, therefore offers excellent performance and efficiency. The system is adjustable in the frequency range between 20MHz – 6000MHz (optional > 6000MHz).

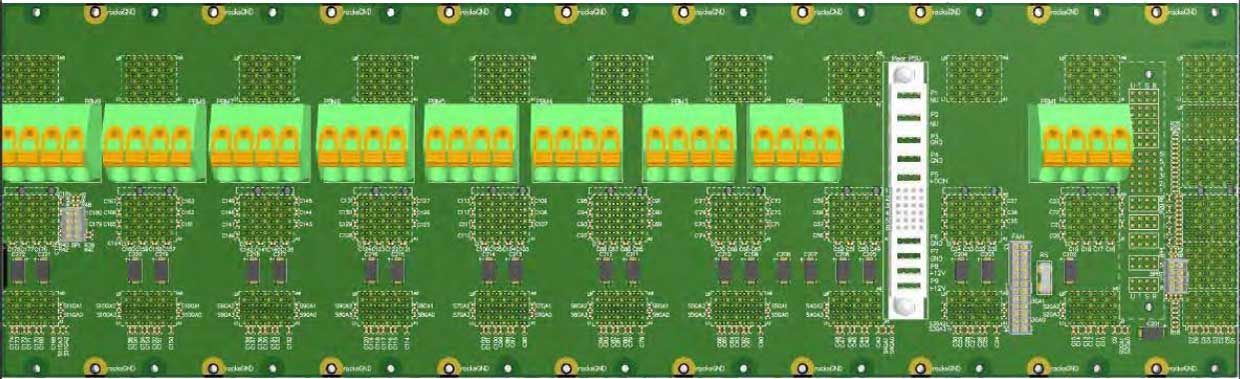

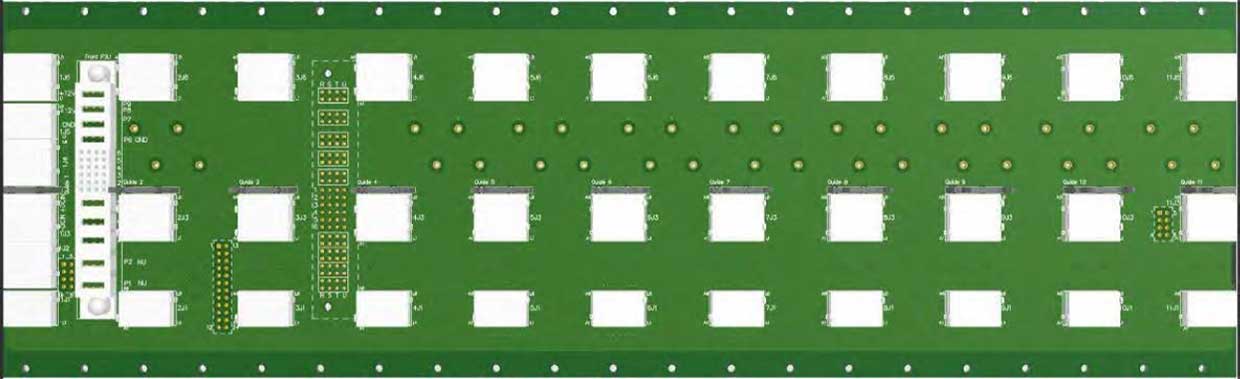

The system contains independent RF power amplifiers modules with scalable RF power, followers (signal generator) modules containing 2 bands with a bandwidth of 300MHz each. The 300MHz bands can be shifted in the RF spectrum depending on the customer needs (in the range 20MHz – 6GHz). All adjustments and control figures are done over a GUI.

Trough all the mentioned facts, the system is adjustable in size, frequencies and power output accordingly the customer needs.

1.1 Antenna Diversity

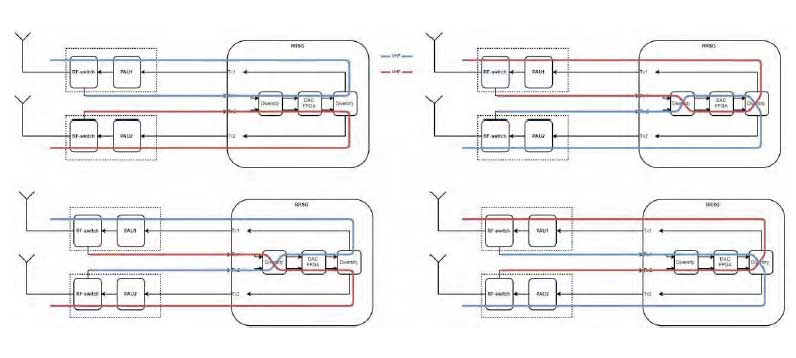

Each follower module has two switches, and the PA has one RX and TX switch. Using this function an antenna diversity for Rx and Tx can be programmed. Four modes can be implemented and programmed. Picture below shows the possible modes.

1.2 Jamming Algorithms

Barrage permanent – device is generating noise signal on defined frequencies with defined power.

Custom permanent – device uses previously saved signal, bandwidth and numbers of carriers can be adjusted and uploaded from a preloaded file.

Waveforms can be generated accordingly customer needs.

Reactive – generating output signal when input power is above a defined threshold.

Reactive – generating an output signal according to input signal.

Reactive – generating an output signal according to input signal, if there is no signal detected in the programmed band, the signal generator create in the whole band a white noise with maximum power.

Both active and reactive jamming can be combined in the same band (hybrid)

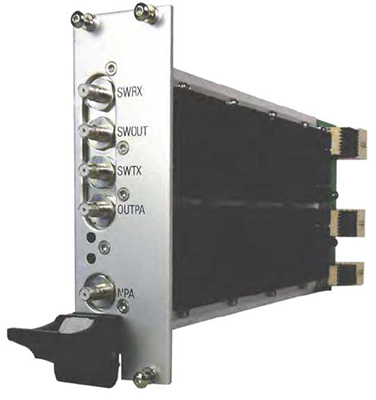

2 Follower (Signal Generator Module)

The follower has two options to disrupt. Follow (reactive, responsive) mode and active mode.

In follower mode, the follower listens to signals which are present. Then it determines the frequencies and generates an interference signal only on the received frequency.

In active mode, the listening is omitted, and an interference signal is generated constantly. This can be done with white noise or a predefined signal.

Settings:

A follower has 2 bands, and each band can cover up to 300MHz frequency range. The 300MHz can be between 20MHz and 6000MHz . This is defined by entering the start and stop frequency. In this range, one can define the so-called sub bands.

A sub band defines exactly which frequencies have to be disturbed in the 300MHz and in which mode. A sub band can be with a maximum width of the 300MHz. For each sub band, the power can be defined. The power can be up to a maximum of 16 dBm and is set to 0 dBm by default.

In follow mode, the input sensitivity threshold of each sub-band can be set. This specifies how large a signal must be to be detected. This can be between -110 dBm and 0 dBm (depending on the adjusted BW).

It is possible to set both modes at each frequency. This means that follow and active sub bands can overlap.
