Anti-Drone Systems
Rex Gun Tactical
Rex Gun Tactical is supplied through Rex Tactical Solutions Indonesia's Anti-Drone Systems portfolio. As a defense procurement and solutions partner, we handle sourcing, configuration, compliance, export documentation and delivery end-to-end — connecting agencies and enterprises with the right system for the mission.
CategoryAnti-Drone Systems
AvailabilityOn request
DocumentationExport-ready
OriginOn request
Technical Data
Rex Gun Tactical Specifications
Rex Gun Tactical - Control The Threat
Rex-Gun Tactical is a fully integrated riflestyle, safe countermeasure against a wide range of drone models. It’s design allows it to be highly portable and is capable of disrupting multiple RF frequency bands simultaneously.
Activation of RF and GNSS (GPS, GLONASS) signal jamming disrupts commercial drone control functions. No damage to drone models or surrounding environment as the drone will:
1. Enter vertical controlled landing, or
2. Return to the starting point (assisting to track the operator)
3. Hover until drone batteries are depleted, initiating controlled vertical landing
Rex Tactical Solution remains intact and available for forensic investigation. Intended disruption of the video transmission to drone operator. The product is packed in a rugged carry case.
Disclaimer:
Rex Gun Tactical has not been authorized as required by the United States Federal Communications Commission (“FCC”). This device is not, and may not be, offered for sale or lease, or sold or leased, in the United States, other than to the United States government, its agencies, and its properly delegated representatives, until such authorization is obtained.
The use of Rex Gun Tactical in the United States by other persons or entities, including, in certain circumstances, state or local government agencies, is prohibited by federal law. Laws limiting the availability of Rex Gun Tactical to certain types of users may apply in other jurisdictions, and any sales will be conducted only in compliance with the applicable laws.
Rex Gun Tactical affects only frequencies at 2.4GHz, 5.8GHz,433Mhz, 915Mhz and GPS/Glonass (optionally). Emergency broadcasts, cellphone communication and other dedicated channels will not be affected.
Features

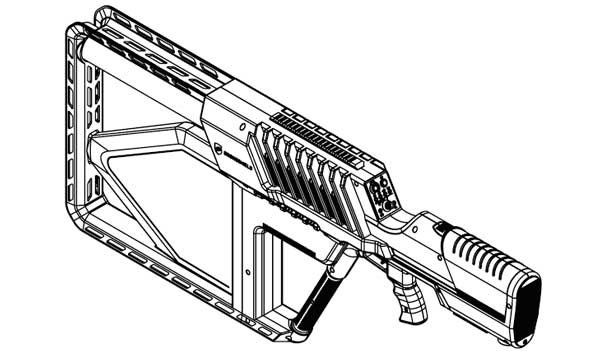

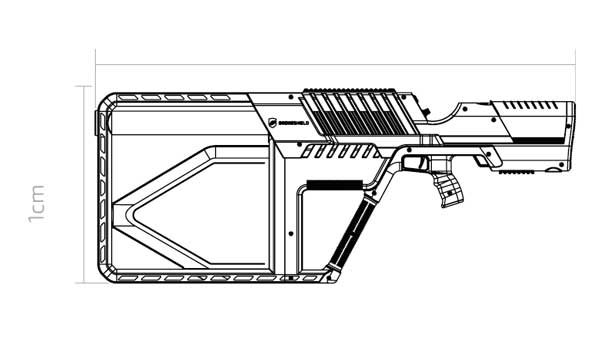

1. Completely application built, Robust Rifle Style Design
Internal aluminium frame for strength and durability

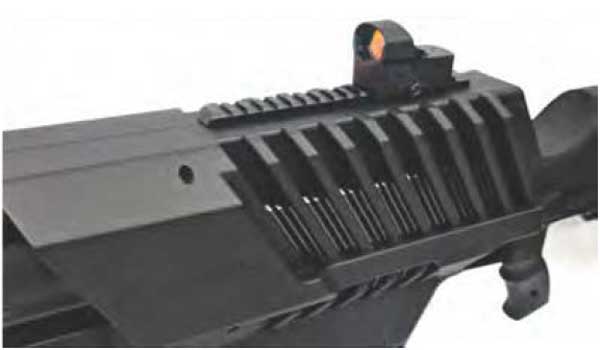

MIL-STD 1913 Rails for mounting scope
(supplied with red dot laser sight)
Angled & horizontal handles for ease of operation and targeting
Single Point Sling Attachment (supplied)
2. Lightweight, Efficient and Directional Antennas
Custom Antenna design for operational effectiveness across multiple bands
Integrated radome for antenna protection
Balanced design for extended operational use
3. Engineered Electronics
Integrated electronic modules for compact application
Optimised power consumption controls (software controlled)
Thermal management system built holistically into design
Use of NATO Military approved battery specification
Ready for operation out of the box, no software updates required

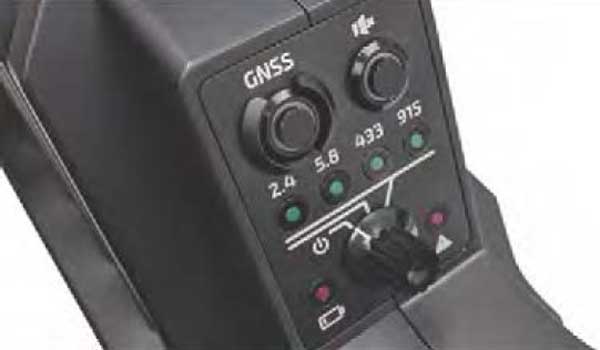

4. Highly Effective User Interface
Rotary dial switch to enable and select jamming frequencies ranges
Separate switch for GNSS functionality. Switch designed to reduce accidental activation
Audio feedback when disruption is activated
(Optional ‘Mute Audio’ switch included) Warning LED indicators for ‘Low Battery’ and ‘System Error’
LED indicators for each enabled individual frequency band
1. DroneGun Specifications
Voltage14.4VDC
Effective Range1 to 2km (1,093 to 2,187 yards)
Rifle Weight7.3kg (16.1lbs) (including 2 x batteries)
User FeedbackVisual + Optional Audio
ColourBlack, Desert Sand
2. Effective Jammer Frequencies
433MHz toggle
915MHz toggle
GNSS L2 & GNSS L1 toggle
2.4GHz ISM
5.8GHz ISM
3. Battery Specifications
Rechargeable Lithium-Ion Battery
NATO-standard military grade or commercial options available
Quick release and reload battery operation
Operating Time2 hours (all frequency bands)
Standby Time8 hours
SafetyComplies and tested against Australian and International SAR safety levels for occupational exposure to Radio Frequency Fields
Start-up Time< 3 secs
4. Environment
Operating temperature-20°C to +55°C (-4°F to +131°F)
Designed to IP54
5. Warranty
12 months from date of shipment
6. Shipping

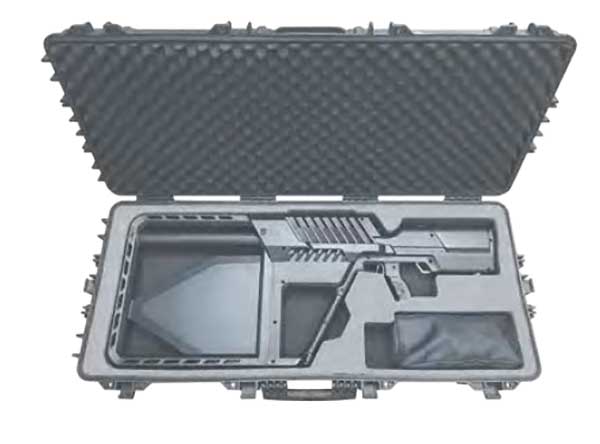

Ships in a Rugged Carry Case (IP67)
Dimensions1190mm x 530mm x 210mm (46.85” x 20.87” x 8.27”)
Total Shipped Weight18kg (39.7 lbs) - including carry case
NATO Stock Number5865661650137
HS Code8543.70.9090
Specifications are indicative and provided for reference. Full technical data sheets and configurations available on request.
Overview
About the Rex Gun Tactical
The Rex Gun Tactical is available through our Anti-Drone Systems line. Rex Tactical Solutions Indonesia connects defense and security clients with the right systems — managing sourcing, configuration, compliance and delivery from a single point of contact.
- Sourced to specification via a global procurement network
- End-user certificates & export documentation handled
- Configuration, logistics and delivery managed end-to-end
- Dedicated 24/7 support from enquiry to final delivery
