Rf One — Rex Tactical Solutions Indonesia

Anti-Drone Systems

Rf One

Name: Rf One
Brand: Rex Tactical Solutions Indonesia
Availability: InStock

Rf One is supplied through Rex Tactical Solutions Indonesia's Anti-Drone Systems portfolio. As a defense procurement and solutions partner, we handle sourcing, configuration, compliance, export documentation and delivery end-to-end — connecting agencies and enterprises with the right system for the mission.

CategoryAnti-Drone Systems

AvailabilityOn request

DocumentationExport-ready

OriginOn request

Request a Quote Call Sales

Technical Data

Rf One Specifications

Application

Key Features

ScalableLightweight and modular, allowing four antennas to be combined for 360° degree coverage.

NetworkableIntegrates easily with other sensors to enable cuing and improved detection confidence.

Purpose-BuiltDesigned and optimized specifically for detection of drones.

Airport SafeRfOne was independently certified as safe for deployment in an airport environment.

Multiband RF Detection Antenna

Detection Capabilities

RexShield RfOne provides reliable RF detection over 360° horizontal field of coverage using 4 x 90° sector antenna panels.

RfOne is capable of passively detecting the radio frequency emissions from commercial drones and drone operators up to 5km.

RfOne detects through pre-conditioned identification and recognition of RF signatures between the controller and drone, detects FPV (First Person Video) RF signals from the drone to controller, and listens out for Controller to Drone Telemetry in frequency bands used by commercially available drones.

RfOne has the ability to distinguish non-drone RF activity within the frequency bands of interest.

Performance

Nominal UAS detection range: up to 5km (3.1 miles) Detects drones operating on 2.4GHz and 5.8GHz bands

Output Options

IP-Based alerts (email, SMS, XML) indicating Zone detected

Operates real time GUI (Graphical User Interface)

Power and Communications

AC 100-240V & DC 12 or 24V

Input power40W

Output powernil (passive system)

Environment and Installation

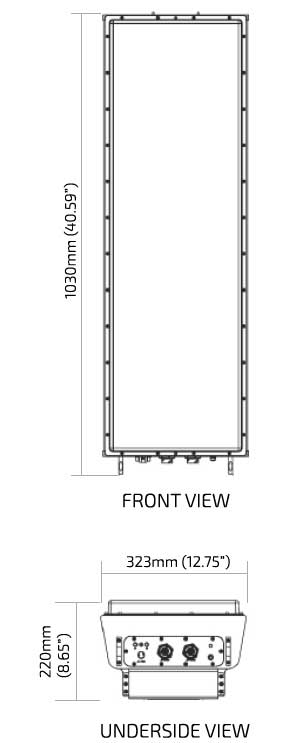

Antennas are tower or mast mountable (IP67),

Receiver and Processor

Weight without packaging11.5kg (25.35lbs)

Operating temperature-40°C to +55°C (-40°F to +131°F)

Maintenance

No moving parts, routine inspection only

Warranty

12 months from date of shipment

Shipping

HS Code85269130

Note:

4 RfOne Antennas are required for 360° detection

Specifications are indicative and provided for reference. Full technical data sheets and configurations available on request.

Overview

About the Rf One

The Rf One is available through our Anti-Drone Systems line. Rex Tactical Solutions Indonesia connects defense and security clients with the right systems — managing sourcing, configuration, compliance and delivery from a single point of contact.

Sourced to specification via a global procurement network
End-user certificates & export documentation handled
Configuration, logistics and delivery managed end-to-end
Dedicated 24/7 support from enquiry to final delivery
